Applicable to all chemical media excluding hydrofluoric acids, phosgene, strong phosphoric acids (con- centration >30% & temperature>150℃), strong alkali (PH>12 & temperature >100℃) and other substances containing fluorion.
With the cold spray process and a multiple thin-layer method, we are capable of fulfilling professional glaze customization according to specific operating conditions of reactions.

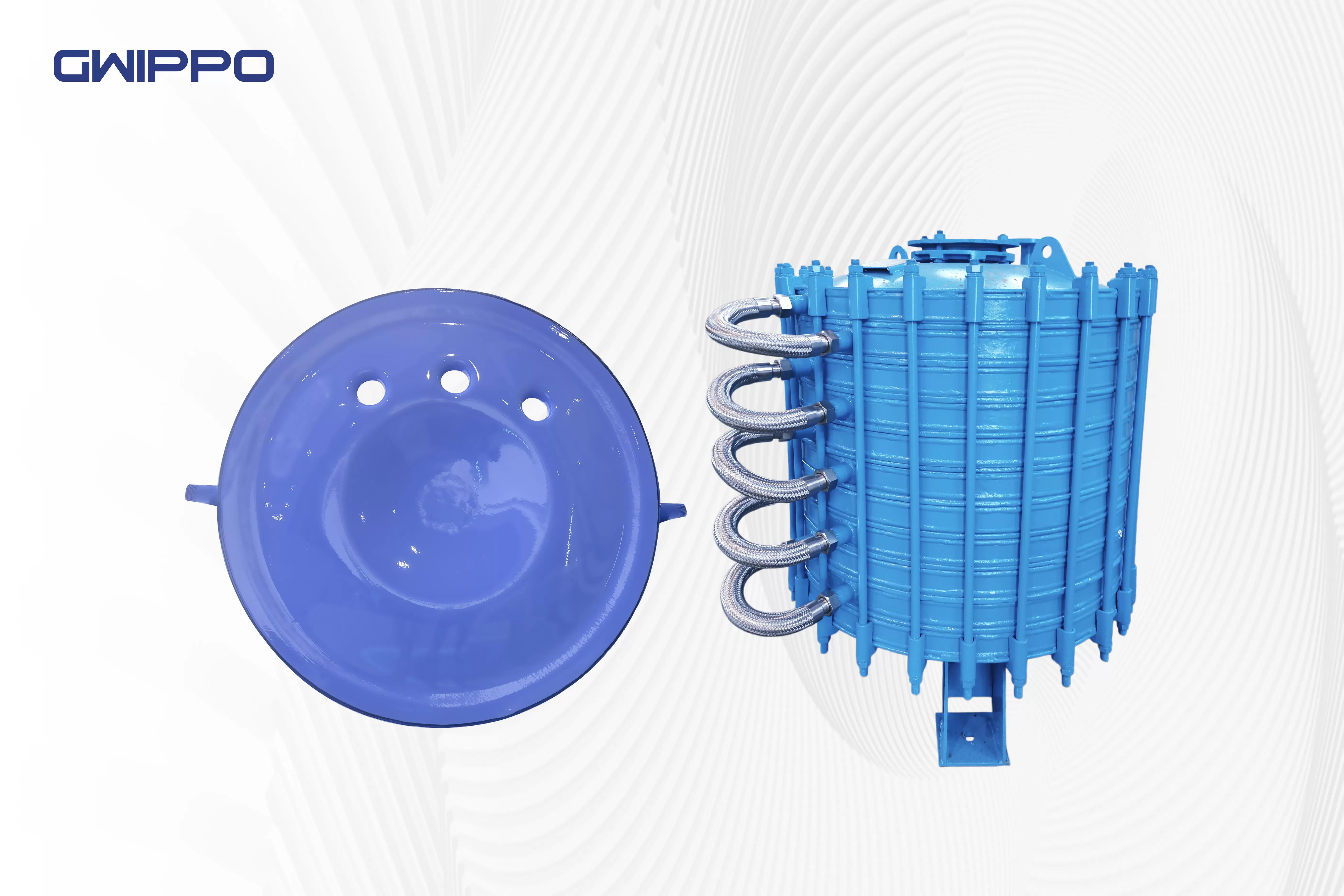

Being small-sized, lightweight, and structurally simple and compact, it can complete heat transfer through counter flows of thermal and cold media.
In case of damages of a single part after a certain period of service, users can change or reduce this part without causing complete machine scrapping or production suspension. Therefore, the service life of complete machine can be substantially extended.

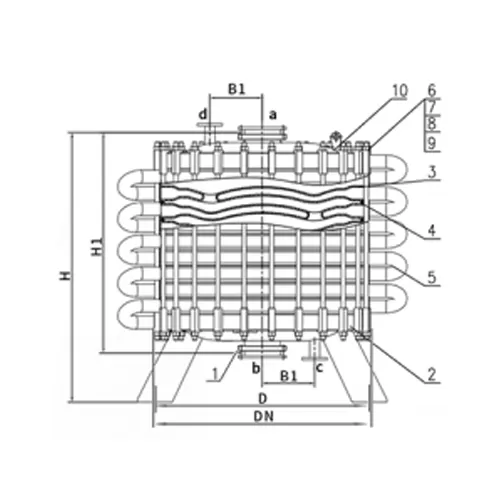

Items | In condenser | In interlayers | |||||
 | Pressure | Designed | FV~0.2Mpa | 0.38Mpa | |||
Operating | -0.098~0.098Mpa | 0.35Mpa | |||||
Temperature | Designed | -19~200℃ | |||||
Glass lined layer thickness | 0.8~1.5mm | ||||||
Plate material | Q245R | ||||||
Nominal specifications of the outlets | Feed inlet | DN100 PN0.6 | |||||
Feed outlet | DN100 PN0.6 | ||||||
Water inlet | PL32 PN1.0 | ||||||
Water outlet | PL32 PN1.0 | ||||||
Parts | Varieties | Features | |||||
Nominal specifications of the outlets | Gaskets | Metallic corrugated PTFE gaskets | A reliable sealing property & vacuum tolerable | ||||
Ordinary PTFE asbestos gaskets | High sealing performance | ||||||
U-shaped tubes | 304 stainless steel hose | Higher bar tolerance (operating pressure P≤0.3MPa) | |||||
Rubber tubes | High-pressure resistant (operating pressure P≤0.2MPa) | ||||||
Glaze type | Customized based on specific media | Superior in acid and alkaline erosion resista | |||||
